Strip Wires Like a Pro: 5 Essential Tips for Any Wire Type

Strip Wires efficiently and safely with our comprehensive guide, tailored for both DIY enthusiasts and professional electricians. Stripping wire can often be a complex task, especially when faced with various types of wires and the need for precise techniques. Our post, ‘Tips and Tricks for Stripping Different Types of Wire. How to Strip Wires Without a Wire Cutter,’ is designed to demystify the process. We delve into the essentials, providing 5 crucial tips that apply to any wire type.

Whether you’re handling standard electrical wires, delicate electronics, or robust industrial cables, our expert insights will equip you with the know-how to tackle wire stripping with confidence. We also include innovative methods for when you don’t have a wire cutter handy. By the end of this guide, you’ll have mastered the art of wire stripping, ensuring both safety and efficiency in your electrical projects.

Top-Rated Wire Strippers for Efficient and Precise Stripping

IRWIN VISE-GRIP Wire Stripping Tool / Wire Cutter, 8 inch, Cuts 10-22 AWG, ProTouch Grip (2078309)
Amazon.com
5.0
IRWIN VISE-GRIP Wire Stripping Tool / Wire Cutter, 8 inch, Cuts 10-22 AWG, ProTouch Grip (2078309)
IRWIN VISE-GRIP Wire Stripper, 2 inch Jaw, Cuts 10-24 AWG, ProTouch Grip for Maximum Comfort (2078300)
Amazon.com
5.0
IRWIN VISE-GRIP Wire Stripper, 2 inch Jaw, Cuts 10-24 AWG, ProTouch Grip for Maximum Comfort (2078300)
WGGE WG-015 Professional 8-inch Wire Stripper/wire crimping tool, Wire Cutter, Wire Crimper, Cable Stripper, Wiring Tools and Multi-Function Hand Tool.
Amazon.com
5.0
WGGE WG-015 Professional 8-inch Wire Stripper/wire crimping tool, Wire Cutter, Wire Crimper, Cable Stripper, Wiring Tools and Multi-Function Hand Tool.
Klein Tools 11061 Self-Adjusting Wire Stripper / Cutter, Heavy Duty, for 10-20 AWG Solid, 12-22 AWG Stranded, and Romex Wire 12/2 and 14/2
Amazon.com
5.0
Klein Tools 11061 Self-Adjusting Wire Stripper / Cutter, Heavy Duty, for 10-20 AWG Solid, 12-22 AWG Stranded, and Romex Wire 12/2 and 14/2
Klein Tools 11063W Wire Cutter / Wire Stripper, Heavy Duty Automatic Wire Stripper Tool for 8-20 AWG Solid and 10-22 AWG Stranded Electrical Wire,Blue/Black
Amazon.com
5.0
Klein Tools 11063W Wire Cutter / Wire Stripper, Heavy Duty Automatic Wire Stripper Tool for 8-20 AWG Solid and 10-22 AWG Stranded Electrical Wire,Blue/Black
Klein Tools 11055 Wire Cutter and Wire Stripper, Stranded Wire Cutter, Solid Wire Cutter, Cuts Copper Wire
Amazon.com
5.0
Klein Tools 11055 Wire Cutter and Wire Stripper, Stranded Wire Cutter, Solid Wire Cutter, Cuts Copper Wire

Understanding Different Types of Wire

Wire is a fundamental component in many electrical and electronic systems. Whether you are wiring a new building, repairing an appliance, or working on a DIY project, it is important to understand the different types of wire available and their specific applications. In this section, we will delve into the most commonly encountered types of wire: solid core, stranded, and coaxial. A good grasp of these wire types is crucial as it directly affects the stripping process. How to use wire strippers safely?

The Hillman Group 123133 19 Gauge Galvanized Steel Wire, 50-Feet, 1-Pack
Amazon.com
5.0
The Hillman Group 123133 19 Gauge Galvanized Steel Wire, 50-Feet, 1-Pack
12 Gauge Aluminum Wire 100 Feet, Anezus Metal Armature Wire Bendable Sculpting Wire for Crafts Wreath Making Jewelry Making Beading Floral (Silver, 2mm)
Amazon.com
5.0
12 Gauge Aluminum Wire 100 Feet, Anezus Metal Armature Wire Bendable Sculpting Wire for Crafts Wreath Making Jewelry Making Beading Floral (Silver, 2mm)
Pure Titanium Wire (1.0 mm (18 ga), 10 Feet)
Amazon.com
5.0
Pure Titanium Wire (1.0 mm (18 ga), 10 Feet)

1. Solid Core Wire

Solid core wire is a single strand of metal, usually copper, encased in an insulating material such as PVC or Teflon. Here are some key characteristics of solid core wire:

  • Rigidity: Solid core wire offers excellent rigidity, making it most suitable for applications that require a fixed installation, such as in buildings or permanent wiring setups.
  • Low resistance: Due to its single-strand design, solid core wire exhibits low resistance, making it ideal for long-distance transmissions or when high signal fidelity is essential.
  • Limited flexibility: Solid core wire lacks flexibility and can become brittle over time, making it susceptible to breakage if subjected to frequent bending or movement. Guide: Electrician Similar Occupations

Example Product: Belden 9913 RG8X Coaxial Cable

2. Stranded Wire

Stranded wire, as the name suggests, consists of multiple small strands of metal wire twisted together. These strands are then encased in an insulating material. Here are some key characteristics of stranded wire:

  • Flexibility: The design of stranded wire provides enhanced flexibility, making it suitable for applications that require frequent movement or bending, such as portable devices and appliances.
  • Improved durability: The multiple strands in stranded wire contribute to its enhanced durability, as each strand shares the load, reducing the risk of breakage.
  • Higher resistance: Compared to solid core wire, stranded wire has slightly higher resistance due to the presence of multiple strands. However, this resistance is generally negligible for most applications. Top 7 Wire Crimpers for Effective Results in 2024

Example Product: Southwire SIMpull THHN Wire

3. Coaxial Cable

Coaxial cable comprises a central conductor surrounded by a dielectric insulating layer, shielded by an outer conductor. It is commonly used in telecommunications, cable TV, and computer networking applications. Here are some key characteristics of coaxial cable:

  • Superior shielding: The layered construction of coaxial cable provides excellent shielding against interference from external sources, ensuring high-quality signal transmission with minimal degradation.
  • Broadband capabilities: Coaxial cable is designed to accommodate a wide range of frequencies and can transmit both audio and video signals effectively, making it suitable for multimedia applications.
  • Limited flexibility: Although coaxial cable offers reliable performance, it is less flexible than stranded or solid core wires, making it more suitable for fixed installations.

Example Product: RG6 Quad Shield Coaxial Cable

Choosing the Right Wire Stripper Tool

#

48-22-6109 For Milwaukee 7-1/8" Wire Stripper/Cutter for Solid and Stranded Wire
48-22-6109 For Milwaukee 7-1/8" Wire Stripper/Cutter for Solid and Stranded Wire
Amazon.com
Greenlee 1955-SS Stainless Steel Wire Stripper for 10-18 AWG Solid and 12-20 AWG Stranded, Heavy-Duty Stripper, Cutter, and Crimper Tool
Greenlee 1955-SS Stainless Steel Wire Stripper for 10-18 AWG Solid and 12-20 AWG Stranded, Heavy-Duty Stripper, Cutter, and Crimper Tool
5.0
Amazon.com

When it comes to electrical work, having the right tools is essential. One tool that is often overlooked but is crucial for any electrician or DIY enthusiast is a wire stripper tool. Wire strippers are designed to remove the insulation from electrical wires, making it easier to connect them safely and securely.

In this blog post, we will explore the different types of wire stripper tools available, including manual and automatic options. We will also discuss important factors to consider when selecting the appropriate tool for the specific wire type you are working with. So, let’s dive in and find the perfect wire stripper tool for your needs. Wire Crimpers: How to maintain and clean?

Manual Wire Stripper Tools

Manual wire strippers are a popular choice for those who value simplicity and reliability. These tools require manual force to strip the wire insulation and offer precise control over the stripping process. Here are some common types of manual wire strippers:

  1. Standard Pliers: Standard pliers can be used as makeshift wire strippers in a pinch, but they lack the precision and efficiency of specialized wire stripping tools. They can be handy for light-duty work or emergencies but are not recommended for frequent use.
  2. Scissor-Style Wire Strippers: Scissor-style wire strippers feature a notched blade that cuts through the insulation while leaving the wire intact. These tools provide accurate and clean cuts, making them suitable for various wire sizes. Brands like Klein Tools and Ideal Industries offer reliable scissor-style wire strippers such as the Klein Tools K12055 or Ideal Industries T-Stripper.
  3. Self-Adjusting Wire Strippers: Self-adjusting wire strippers, like the Irwin Vise-Grip Self-Adjusting Wire Stripper, are designed to automatically adjust to the wire size, simplifying the stripping process. These tools are highly efficient and save time by eliminating the need to manually adjust the tool for different wire gauges.

Automatic Wire Stripper Tools

For those who value speed and convenience, automatic wire strippers are the way to go. These tools use a mechanism to strip the wire insulation, reducing the effort required on your part. Automatic wire strippers are especially useful for repetitive tasks or when dealing with a large number of wires. Here are a couple of popular options:

  1. Cable Slitter: A cable slitter, such as the Jonard CST-1900, is a versatile tool that not only strips the wire insulation but also slits the outer sheath of cables. This is particularly helpful when working with coaxial cables or other multi-layered wires.
  2. Electric Wire Strippers: Electric wire strippers, like the StripMeister Original Automatic Wire Stripping Machine, take automation to the next level. These machines can strip multiple wires simultaneously and are ideal for heavy-duty applications. While electric wire strippers are more expensive, they are a worthwhile investment for professionals who handle a high volume of wire stripping tasks regularly.

Factors to Consider

When selecting the right wire stripper tool, keep these factors in mind to ensure you make a suitable choice:

  • Wire Gauge: Consider the range of wire gauges the tool can handle. Ensure that the stripper tool can accommodate the wire sizes you commonly work with.
  • Insulation Material: Different wire types have different insulation materials, such as PVC, Teflon, or rubber. Choose a wire stripper tool that can effectively strip the specific insulation material you encounter most frequently.
  • Ergonomics: Comfort and ease of use are important, particularly for tasks that require prolonged use of the wire stripper tool. Look for handles with ergonomic design and non-slip grips to minimize fatigue and increase control.
  • Durability: A reliable wire stripper tool should be made of high-quality materials to withstand regular use and potential physical stress. Check customer reviews or choose reputable brands to ensure the tool’s durability.

Proper Wire Stripping Techniques

When it comes to working with wires, proper wire stripping techniques are essential to ensure a secure and reliable connection. Whether you are a professional electrician or a DIY enthusiast, understanding how to strip different types of wire correctly is crucial. In this blog post, we will provide you with step-by-step instructions on how to strip wires using a wire stripper tool, covering techniques for both single and multiple wire stripping.

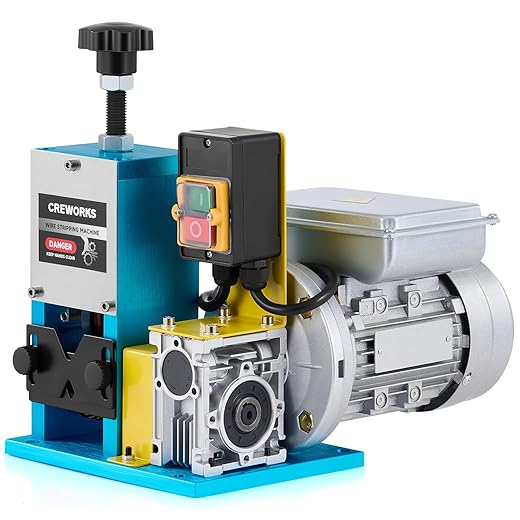

CREWORKS Automatic Wire Stripping Machine for 0.06"-1" Copper Wires, Motorized Wire Stripper Tool for 7/0-15 AWG Scrap Electrical Wire Recycling, Electrical Tool for DIY Cable Copper Wire Stripping
CREWORKS Automatic Wire Stripping Machine for 0.06"-1" Copper Wires, Motorized Wire Stripper Tool for 7/0-15 AWG Scrap Electrical Wire Recycling, Electrical...
5.0
Amazon.com

Single Wire Stripping

  1. Gather the necessary tools: To strip a single wire, you will need a wire stripper tool, such as the Klein Tools 11055 Wire Stripper. It is important to choose a wire stripper that is appropriate for the wire gauge you are working with.
  2. Identify the correct stripping hole: Wire strippers come with multiple holes of various sizes. Select the hole that corresponds to the diameter of the wire you are working with. For example, if you are stripping a 14-gauge wire, choose the hole labeled for 14 AWG.
  3. Position the wire: Place the wire into the chosen stripping hole, ensuring that about half an inch of the wire extends beyond the tool’s jaws. Hold the wire and tool securely in your dominant hand.
  4. Apply pressure and rotate: Squeeze the handles of the wire stripper tool to close its jaws around the wire. Gently rotate the tool in a circular motion around the wire, allowing the cutting blades to score the insulation.
  5. Pull and remove: After rotating the wire stripper tool a full 360 degrees, release the pressure on the handles and pull the wire with one hand while holding the tool steady with the other. The insulation should easily slide off, leaving the bare wire exposed.

Multiple Wire Stripping

  1. Prepare the wires: Before stripping multiple wires, separate them and make sure they are properly aligned. Use wire ties or clips to keep them organized and prevent tangling.
  2. Choose the correct stripping notch: Unlike single wire stripping, multiple wire stripping involves using a notch in the wire stripper tool that allows for stripping multiple wires at once. Refer to the tool’s instructions or markings to identify the appropriate notch.
  3. Insert the wire bundle: Gently slide the wire bundle into the chosen stripping notch. Make sure all the wires are inserted fully and evenly, without crossing or overlapping.
  4. Apply pressure and strip: Squeeze the handles of the wire stripper tool firmly to close the jaws around the wire bundle. Maintain a steady grip on the tool and pull the wires straight out, against the blades, to strip off the insulation.
  5. Inspect and trim if needed: After stripping, inspect the wires to ensure that the insulation has been fully removed without damaging the conductors. If necessary, trim any excess insulation using a wire cutter or the built-in wire cutter on your wire stripper.

By following these step-by-step instructions, you can strip wires accurately and efficiently. Proper wire stripping techniques not only contribute to a neat and professional-looking wiring job, but they also help to prevent electrical issues caused by poorly secured connections.

Remember, always follow safety guidelines and use appropriate tools when working with electrical wiring. Consider investing in quality wire stripper tools, such as those from Klein Tools or Greenlee, to ensure accurate and consistent results.

Key Benefits of Proper Wire Stripping Techniques

  • Maintains wire integrity for optimal connectivity
  • Prevents short circuits and electrical hazards
  • Saves time and effort by achieving clean, precise wire stripping
  • Ensures professional-looking wire connections
  • Reduces the risk of wire damage during installation

Now that you have a clear understanding of proper wire stripping techniques, you can confidently tackle your electrical projects with precision and efficiency. Stay safe and enjoy your wiring endeavors!

Disclaimer: The brands, products, and models mentioned in this article are for illustrative purposes only. Please refer to the manufacturer’s specifications and guidelines when selecting wire stripper tools.

Tips and Tricks for Successful Wire Stripping

When it comes to wire stripping, efficiency and precision are key. Whether you’re a professional electrician or a DIY enthusiast, mastering the art of wire stripping can save you time, prevent damage to delicate wires, and ensure a successful electrical connection. In this blog post, we will share some valuable tips and tricks to help you improve your wire stripping process.

Jonard Tools CST-1900 Round Cable Stripper for Fast and Precise Jacket Removal, 3/16" to 1 1/8" Diameter, Cable Strip & Ring Tool, Original version
Jonard Tools CST-1900 Round Cable Stripper for Fast and Precise Jacket Removal, 3/16" to 1 1/8" Diameter, Cable Strip & Ring Tool, Original version
4.0
Amazon.com
VCELINK Automatic Wire Stripper and Cutter, Professional 2 in 1 Adjustable Electrical Cable Wire Stripping Tool&Eagle Nose Pliers (7-Inch)
VCELINK Automatic Wire Stripper and Cutter, Professional 2 in 1 Adjustable Electrical Cable Wire Stripping Tool&Eagle Nose Pliers (7-Inch)
4.0
Amazon.com

1. Use the Right Tools

Using the right tools for wire stripping not only makes the task easier but also minimizes the risk of damaging the wire itself. Here are some essential tools to consider:

  • Wire strippers: Invest in a high-quality wire stripper with adjustable blades that match the gauge of the wire you’re working with. This ensures precision and prevents damage to the conductor.
  • Needle-nose pliers: Handy for holding and manipulating wires, especially when dealing with smaller or more delicate wires.
  • Wire cutters: Essential for snipping off the ends of the wire after stripping.

2. Identify the Correct Gauge

Before stripping any wire, it’s crucial to identify the correct gauge. The wire’s gauge refers to its size, and using the wrong stripping slots on your wire stripper can result in damaging the wire or leaving behind unwanted insulation. Remember these helpful tips:

  • Smaller gauge wires have larger numbers (e.g., 22 AWG), while larger gauge wires have smaller numbers (e.g., 10 AWG).
  • Ensure the wire gauge matches the stripping slot on your wire stripper, or adjust the blade setting if available.

3. Handle Delicate Wires with Care

Working with delicate wires requires extra caution to prevent damage. Delicate wires, such as those found in electronics or sensors, can be easily nicked or broken during the stripping process. Consider the following:

  • Hold the wire near the insulation to provide support and stability while stripping.
  • Use wire strippers with precision blades designed for delicate wires.
  • Apply gentle pressure when stripping to avoid putting excessive force on the wire.

4. Strip a Suitable Length

Stripping the proper length of insulation is essential for making a secure electrical connection. Stripping too much insulation can expose unnecessary wire and increase the risk of short circuits, while stripping too little can result in a weak or unreliable connection. Keep these points in mind:

  • Read the manufacturer’s guidelines for the recommended strip length if available.
  • Be cautious when stripping multiple wires together to ensure each wire is stripped to the appropriate length.

5. Keep an Eye on Insulation Integrity

While stripping wires, it’s important to maintain the integrity of the insulation surrounding the conductor. Damaged or nicked insulation can lead to electrical shorts or compromised connections. Take note of the following:

  • Inspect the insulation after stripping to ensure it remains intact.
  • If the insulation is damaged, trim the stripped portion and strip it again.

6. Practice Makes Perfect

Wire stripping is a skill that improves with practice. Don’t be discouraged if you encounter difficulties initially – keep practicing, and you’ll soon become more proficient. Consider the following tips:

  • Start with simpler, bulkier wires before moving on to more delicate ones.
  • Seek out tutorials or videos online to learn different techniques and gain insights from professionals.

Remember, wire stripping is a crucial step in any electrical project, and taking the time to perform it accurately will save you headaches down the line. By following these tips and incorporating them into your wire stripping routine, you’ll be well on your way to successful wire connections every time.

Wrapping Up: Key Points for Efficient Wire Stripping

In conclusion, this blog post has equipped readers with valuable insights for effectively stripping various types of wire. By incorporating the knowledge of wire types, selecting appropriate tools, utilizing correct techniques, and implementing the provided tips and tricks, successful wire stripping can be accomplished. It is crucial to prioritize safety and consider all relevant factors when engaging in wire stripping projects.
